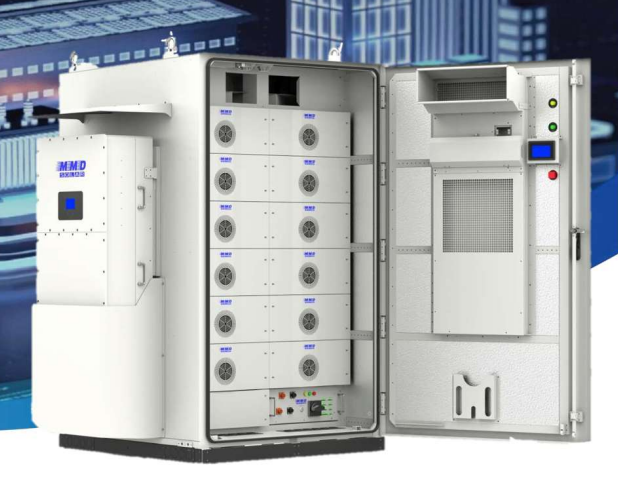

MMD-eBank-50-161F

MMD-eBank-50-161F

Features

  • Easy to install and deploy with large space utilization
  • Unique modular design & flexible function configuration
  • With self-use, peak shifting, forced charging & discharging and other working modes
  • Strong scalability, simple & convenient expansion on both AC and DC sides

للحجز سجل بياناتك وهنتواصل معاك في أقرب وقت

Please select form to show

شارك على :

Facebook
Twitter
LinkedIn

الوصف

Specifications

MMD-eBank-50-161FModel
BATTERY PARAMETERS
Battery TypeLFP
Number of battery packs8
Rated voltage576V
Voltage range504~648V
Rated energy161kWh
Max. continuous charging
and discharging current		157A
Discharge Depth100%
Cycle life8000 times
PV PARAMETERS
Maximum PV Input Power96kW
Rated Input Voltage600Vdc
Maximum Input Voltage1000Vdc
MPPT Voltage Range 150~850VDC
PV Input Current40A*4
AC SIDE PARAMETERS
AC rated output power50kW
AC Max .output power50kVA
AC rated input/output current76A
Iso transformerTransformer less
Voltage 3L/N/PE;230/400V
Frequency 50/60Hz
THDi≤3%
Power Factor0.8leadingto0.8lagging
SYSTEM PARAMETERS
Dimensions (W × D × H)1200*1250*2050
Weightabout1150kg
CommunicationCAN/RS485/WiFi/ETH
Expansion functionSupport the connection of diesel generators
EMSWith EMS control logic
Enclosure Protection RatingIP54
CoolingAir cooling
Operation temperatureCharging:0~50℃/Discharge:-20~50℃
Humidity10%~95%RH
Altitude <2000m
