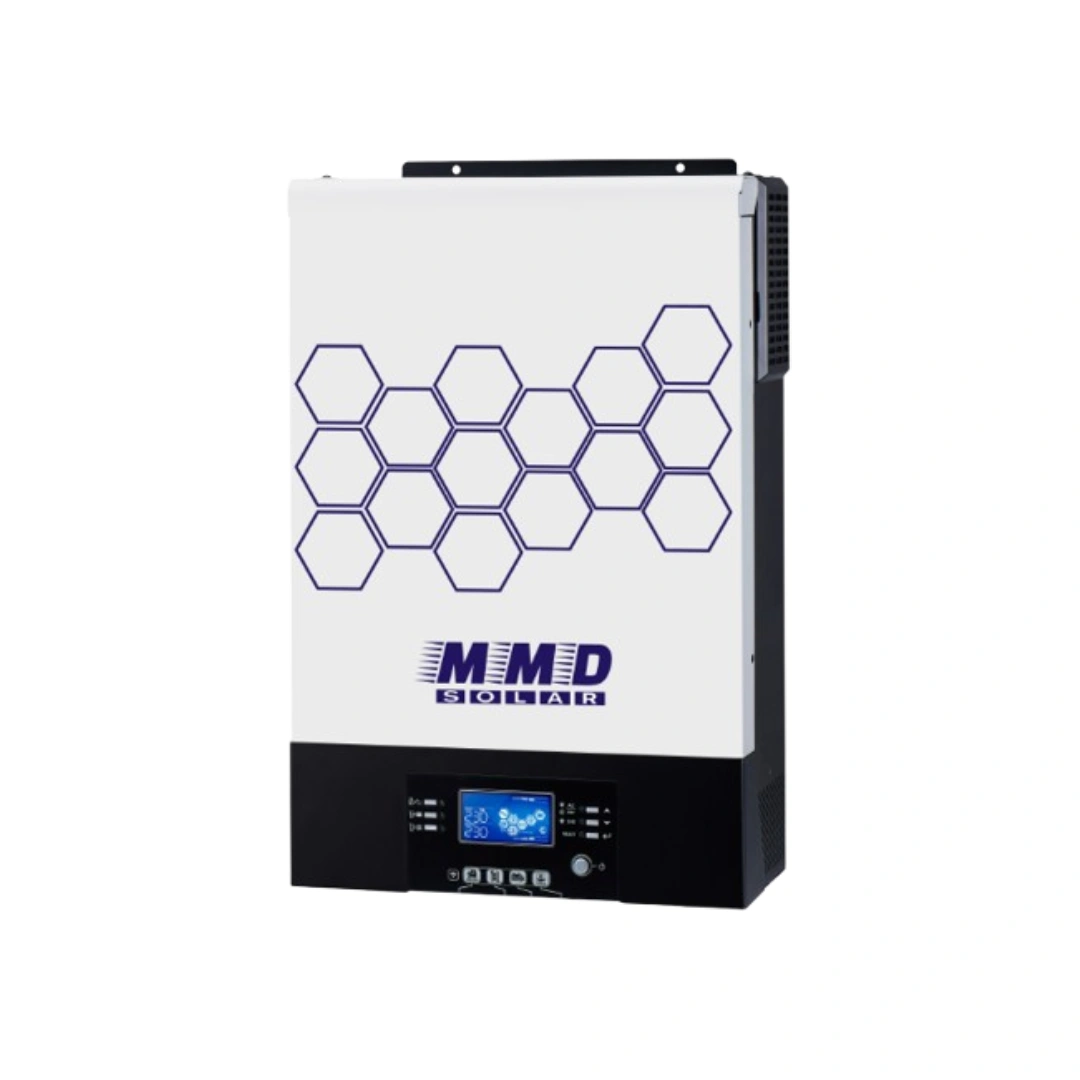

MMD - 6 KW SOLAR INVERTER/ CHARGER

MMD – 6 KW SOLAR INVERTER/ CHARGER

Purpose
This manual describes the assembly, installation, operation and troubleshooting of this unit. Please read
this manual carefully before installations and operations. Keep this manual for future reference.
Scope
This manual provides safety and installation guidelines as well as information on tools and wiring.

للحجز سجل بياناتك وهنتواصل معاك في أقرب وقت

Please select form to show

شارك على :

Facebook
Twitter
LinkedIn

الوصف

SPECIFICATIONS

INVERTER MODEL6KW6.2KW
Input Voltage WaveformSinusoidal
Nominal Input Voltage230Vac
Low Loss Voltage110Vac ±7V
Low Loss Return Voltage120Vac ±7V
High Loss Voltage280Vac ±7V
High Loss Return Voltage270Vac ±7V
Max AC Input Voltage300Vac
Nominal Input Frequency50Hz / 60Hz (Auto detection)
Low Loss Frequency46(56)±1Hz
Low Loss Return Frequency46.5(57)±1Hz
High Loss Frequency54(64)±1Hz
High Loss Return Frequency53(63)±1Hz
Power Factor>0.98
Output Short Circuit ProtectionLine mode: Circuit Breaker Battery mode: Electronic Circuits
Efficiency (Line Mode)93% (Peak Efficiency)
Transfer TimeLine mode ↔ Battery mode 0ms Inverter ↔ Bypass 4ms

Battery Mode Specifications

INVERTER MODEL6KW6.2KW
Rated Output Power6KVA/6KW6.2KVA/6.2KW
Output Voltage WaveformPure Sine WavePure Sine Wave
Output Voltage Regulation230Vac±5%230Vac±5%
Output Frequency50Hz or 60Hz50Hz or 60Hz
Peak Efficiency92%92%
Overload Protection5s@≥150% load; 10s@110%~150% load; 100ms @ ≥200% load5s@≥150% load; 10s@110%~150% load; 100ms @ ≥200% load
Surge Capacity2* rated power for 5 seconds2* rated power for 5 seconds
Nominal DC Input Voltage48Vdc48Vdc
Operating Range40Vdc~66Vdc40Vdc~66Vdc
Cold Start Voltage46Vdc46Vdc
Low DC Warning Voltage @ load < 50%45.0Vdc–
Low DC Warning Voltage @ load ≥ 50%44.0Vdc–
Low DC Warning Return Voltage @ load < 50%47.0Vdc–
Low DC Warning Return Voltage @ load ≥ 50%46.0Vdc–
Low DC Cut-off Voltage @ load < 50%43.0Vdc–
Low DC Cut-off Voltage @ load ≥ 50%42.0Vdc–
High DC Recovery Voltage64Vdc64Vdc
High DC Cut-off Voltage66Vdc66Vdc
No Load Power Consumption<75W<75W



Charge Mode Specifications



Charging Mode
INVERTER MODEL6KW6.2KW
Charging Current @ Nominal Input VoltageDefault: 60A, max: 120ADefault: 60A, max: 120A
Bulk Charging Voltage
Flooded Battery		58.4Vdc58.4Vdc
Bulk Charging Voltage
AGM / Gel Battery		56.4Vdc56.4Vdc
Floating Charging Voltage54Vdc54Vdc
Overcharge Protection66Vdc66Vdc
Charging Algorithm3-Step3-Step



Solar Specifications

Solar Input (MPPT type)
INVERTER MODEL6KW6.2KW
Rated Power6000W6000W
Max. PV Array Open Circuit Voltage500Vdc500Vdc
PV Array MPPT Voltage Range120~430V120~430V
Maximum Solar Input Current27A27A



ECO/Bypass Mode Specifications

Bypass Mode
INVERTER MODEL6KW6.2KW
Input Voltage WaveformSinusoidalSinusoidal
Low Loss Voltage176Vac±7V176Vac±7V
Low Loss Return Voltage186Vac±7V186Vac±7V
High Loss Voltage280Vac±7V280Vac±7V
High Loss Return Voltage270Vac±7V270Vac±7V
Nominal Input Frequency50Hz / 60Hz (Auto detection)50Hz / 60Hz (Auto detection)
Low Loss Frequency46(56)±1Hz46(56)±1Hz
Low Loss Return Frequency46.5(57)±1Hz46.5(57)±1Hz
High Loss Frequency54(64)±1Hz54(64)±1Hz
High Loss Return Frequency53(63)±1Hz53(63)±1Hz



General Specifications

INVERTER MODEL6KW6.2KW
Parallel-ableYESYES
CommunicationRS232 and Wi-FiRS232 and Wi-Fi
Safety CertificationCECE
Operating Temperature Range-10℃ to 50℃-10℃ to 50℃
Storage Temperature-15℃ to 60℃-15℃ to 60℃
Humidity5% to 95% Relative Humidity (Non-condensing)5% to 95% Relative Humidity (Non-condensing)
Dimension (DWH), mm140 × 295 × 468140 × 295 × 468
Net Weight, kg1212
